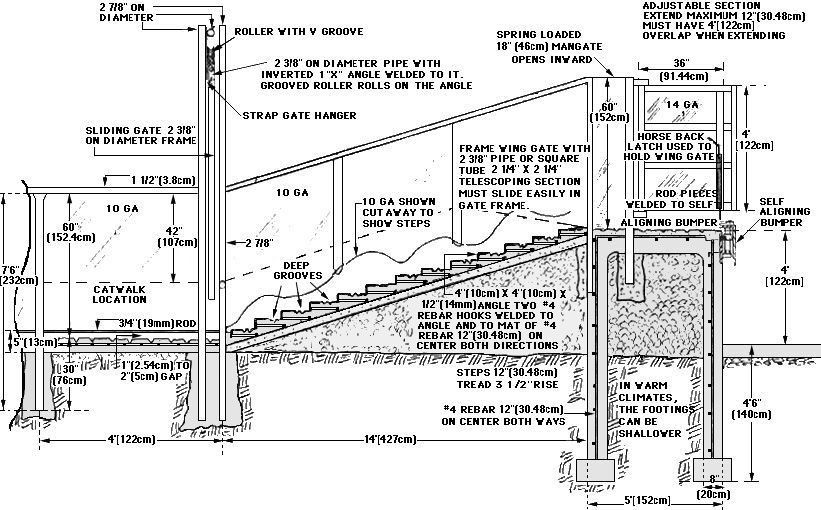

Loading Ramp Sideview

Concrete Wall Shown Cutaway

Catwalk per specs: on ramp portion catwalk must have handrail with 4" (10 cm) by 1/8" (7 mm) kickplate and two 3/4" (19 mm) rodrails: railing height 42"(107 cm)

All catwalks that are more than 2 ft.(61 cm) off the ground must have handrails for worker safety.
