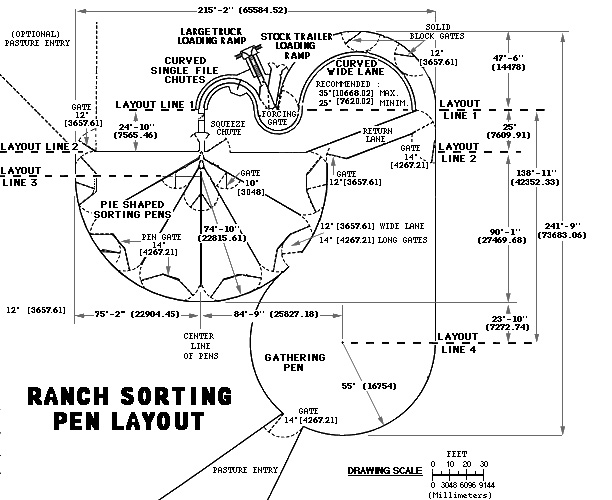

Ranch Sorting Pen Layout

This system can be used to sort individual animals into different groups. It is recommended for ranches and other operations where cattle or other animals are sorted by weight, body condition, breed etc.
This is ideal for use with electronic tagging and identification systems.

NOTE: All fencing on Forcing Pen, Curved Wide Lane and Single File Chutes are solid.

All gates in Forcing Pen are solid.

Divert and Pen Gates in Wide Lanes are longer than lane widths so they open at an angle and eliminate any sharp corners
